Home Theater Acoustics: The Complete Scientific Guide for Frisco Homeowners

Home theater acoustics is how a room's size, walls, and air noise shape the sound you hear. Lock dimensions, isolation (keeping sound in and noise out), treatment zones, and HVAC noise before drywall. A closed rectangle that passes the ITU-R BS.1116 length-to-height and width-to-height test, with a quiet air path, gives speakers a fair room. Open living rooms and already-finished spaces belong on the treatment and troubleshooting guides.

If the room is already finished, start with the home theater acoustics treatment guide. If dialogue is already muddy where you watch movies, use the sound-problems troubleshooting guide. For height-speaker angles, see the Dolby Atmos layout guide.

Which room size and proportions should you lock before drywall?Link to this section#

Pick a closed room you can seal. The length, width, and height tests below assume a closed rectangle with four walls and a ceiling. An open family room shares volume with the kitchen; an L-shaped or vaulted room is a different geometry. In those cases skip the example-plan table below and assess the actual volume, openings, and seating after a walk-through, or use the treatment guide if the room is already finished.

ITU-R BS.1116-3 (February 2015) is a broadcast listening-room recommendation, not a home-theater code. For multichannel or advanced sound systems it lists a floor area of 30-70 m2 (about 323-753 sq ft). Two-channel rooms may be smaller, down to 20 m2. The room should be symmetrical about the center line between the front left and right speakers, and the floor plan should be a rectangle or a trapezium.

EBU Tech 3276 (1998) wants at least 40 m2 (about 431 sq ft) for a reference listening room, or 30 m2 for a high-quality control room, and it caps volume at 300 m3 (about 10,594 cu ft). A Frisco bonus room under 323 sq ft is below the ITU multichannel floor. You can still build it. Expect stronger bass pile-up and plan thicker traps, not a miracle from EQ (equalization, electronic tone correction).

Frisco residential work now runs under the 2024 International Residential Code, with local amendments, effective 1 March 2026. Apply the ratio test on the drawings while the studs can still move.

Enlarge

Complimentary phone consultation

Planning a theater or media room?

Tell us the room and how you like to watch. A complimentary phone consultation is the first step — no obligation, and the written proposal is yours to keep.

Start with a ConsultationCall (469) 666-0747

No obligation · We aim to respond within one business day

How do you test length, width, and height against ITU and EBU?Link to this section#

Call the longest floor dimension length (l), the shorter one width (w), and the ceiling height (h). ITU-R BS.1116-3 and EBU Tech 3276 use the same inequality so low-frequency eigentones (the room's standing-wave notes) spread out instead of stacking:

1.1 × (w / h) ≤ (l / h) ≤ 4.5 × (w / h) − 4, and both l / h < 3 and w / h < 3.

EBU adds one more cut: skip length, width, and height ratios that sit within 5% of a whole number. A cube fails that cut. So does 18 ft by 12 ft by 9 ft, because length over height is exactly 2.

The first axial mode (the lowest boom between one pair of parallel surfaces) is f = c / (2 × L). Two rigid, parallel walls form the closed rectangular path described here, so the first mode is n = 1. The formula assumes a closed rectangular path. Use 1100 ft/s for a quick check; warmer air raises c a little.

Example: a 22 ft by 16 ft by 9 ft closed room. Floor area is 352 sq ft (32.7 m2), inside the ITU multichannel band. w / h = 16 / 9 = 1.778. l / h = 22 / 9 = 2.444. The allowed window is 1.1 × (16 / 9) = 1.956 to 4.5 × (16 / 9) − 4 = 4.000, and both ratios stay under 3, so the plan passes the ratio test. First length mode: 1100 / (2 × 22) = 25 Hz. First width mode: 1100 / (2 × 16) = 34.4 Hz. First height mode: 1100 / (2 × 9) = 61.1 Hz.

Example: a 16 ft by 16 ft by 9 ft square. Floor area is 256 sq ft (23.8 m2), below the ITU multichannel floor. w / h and l / h are both 1.778, under the 1.956 lower bound, so the ratio test fails. Length and width share the same first note. If the framing is still open, move a wall so the two floor spans differ. Lowering the ceiling does not separate those two axes. If the square stays, budget more low-frequency absorption and measure after the room is closed.

ITU and EBU also give a target midband reverberation time (how long sound takes to drop 60 dB), written Tm, as Tm = 0.25 × (V / 100)^(1/3) seconds, with V in cubic metres. That average is taken over 200 Hz to 4 kHz. EBU wants Tm between 0.2 and 0.4 s.

Example: the 22 × 16 × 9 ft room has V = 22 × 16 × 9 = 3,168 cu ft = 89.7 m3. Tm = 0.25 × (89.7 / 100)^(1/3) = 0.241 s, inside the EBU band. That is a calculated target after treatment, not a prediction of an empty drywall box and not a measured decay.

Isolation or treatment first: what should the walls do?Link to this section#

Isolation keeps sound in (and noise out). Treatment shapes the sound that stays inside. Build the shell first. Panels on a leaky wall will not stop the hallway from hearing the LFE (dedicated bass channel).

CEDIA/CTA-RP22 (September 2023) uses two separate scales. Isolation Levels describe how much airborne sound the shell should block, stated as typical STC or Rw (a lab single-number for a wall or floor). Performance Levels describe playback and the background-noise target once the system is on. Do not treat an Isolation Level as a Performance Level, and do not treat STC as a guarantee at bass frequencies: the rating is a single number, and low-frequency transmission depends on the full assembly, doors, windows, and flanking paths.

Typical STC / Rw values sit in the table, from 34 for ordinary construction through 80 for Isolation Level 4. Level 4 is a floating room-in-a-room; CEDIA calls a consultant mandatory.

Doors punch a hole in a good wall. RP22 wants a doorset (door, frame, seals, and threshold together). The minimum it names is a 45 mm (1 3/4 in.) solid-core door with rubber weatherstripping and a sealed threshold. Two doors with an air gap, or a small lobby, beat one fancy leaf. Windows should meet the wall class; RP22 uses STC 60 for typical applications and would rather you skip glass in an STC 75 wall. Thermal double glazing is not the same as acoustic glazing.

Flanking (sound that walks around the rated wall) kills the number. Stagger electrical boxes by at least one stud. Leave a 6 mm (1/4 in.) gap around pipes and ducts, then fill it with acoustic sealant.

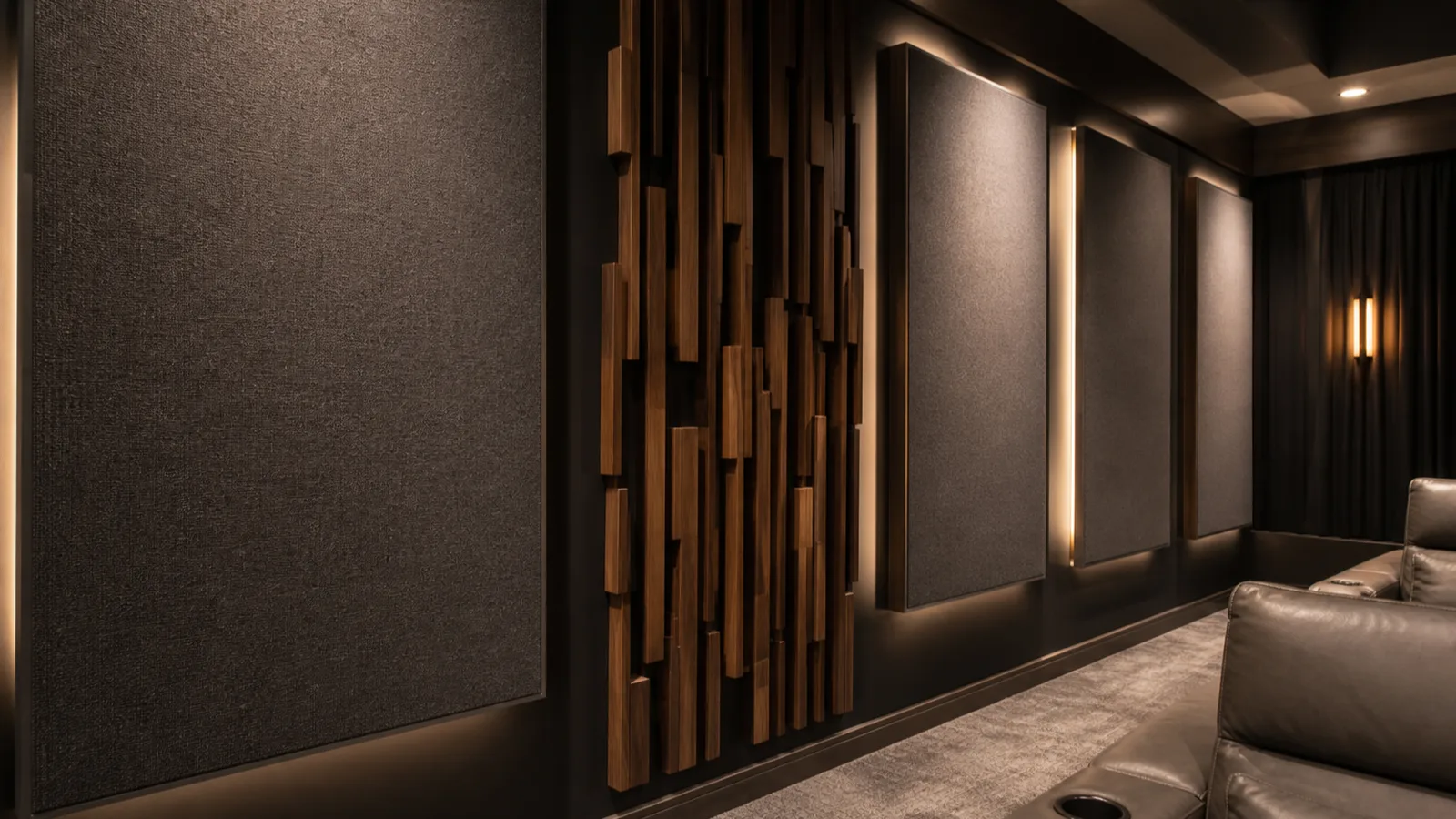

Where should absorption and diffusion go in a new room?Link to this section#

Leave the zones on the drawings so cans and returns do not land in them. ITU-R BS.1116-3 wants early reflections that arrive within 15 ms of the direct sound attenuated by at least 10 dB from 1-8 kHz. Those first hits are the side walls and the ceiling between the front speakers and the main seat. Mark them with a mirror: sit in the seat, have someone slide a mirror along the wall, and treat the spot where you see the speaker.

CEDIA/CTA-RP22 §9.3 says many different approaches exist and then gives examples. One example places absorption on the center of the front and rear walls, with scattering toward the sides of the rear wall. Side walls can mix reflection, absorption, and diffusion. Horizontal-scattering diffusers belong in a band from about 300 mm (1 ft) below ear height to about 1 m (3.28 ft) above it. Ceiling devices should throw front-speaker bounce toward the sides, not back into the seats. Flutter echo (the metallic zip between two parallel hard walls) should be gone at every seat; treat those faces down to about 250 Hz, and carry absorption at least 300 mm below seated ear height.

A thicker porous board absorbs lower in frequency than a thin one on the same solid backing. The Owens Corning Insulation Systems Catalog for Commercial Buildings lists Fiberglas 700 Series boards, Type A mounting (board against a solid back). 703, plain, 1 in. is NRC 0.70 (noise reduction coefficient, a 0-1 average of absorption) with a 125 Hz coefficient of 0.11. The same board at 2 in. is NRC 1.00 with 125 Hz at 0.17. Those are that product's ASTM C423 ratings. Foil-faced 703 (FSK, foil-scrim-kraft vapor facing) at 2 in. is NRC 0.75, with 125 Hz at 0.63 and 4000 Hz at 0.35. The facing raises the 125 Hz coefficient and lowers the 4000 Hz coefficient compared with plain 2 in. 703 (0.17 and 0.98). Pick the facing for the band you need; Owens Corning says specific designs should be evaluated in end-use configurations. An air gap behind a thicker board, which RP22 notes, extends the useful low end of that assembly.

Dolby's home Atmos guidelines put listener-level speakers at about 3.9 feet (1.2 metres), ear height for a seated listener. Overhead speakers sit at two to three times that height. Dolby's overhead-speaker notes ask for absorbing and diffusing treatment on walls, floor, and ceiling. If you use upfiring Atmos Enabled speakers, RP22 wants a bare reflective patch of at least 1.5 m2 (16 sq ft) per speaker on a ceiling 7.5-12 ft high, and it bars those boxes from Performance Level 3 and 4 systems. Keep that ceiling bounce patch reflective.

That 1 in. 703 rating is for that board, not for foam, and it does not describe the first axial notes of a given room. RP22 §9.3.4 treats carpet as one floor example and says other floor finishes can be used. A breathable open-back rug over felt is one construction RP22 discusses.

How quiet does the HVAC need to be?Link to this section#

If a supply boot sits over the seat and the measured noise with the air handler running covers quiet dialogue, move the register or add a silencer. Placement alone does not prove that masking; measure it with the mechanical system on.

ITU and EBU both want continuous background noise, including air conditioning, preferably at or under NR 10 (noise rating, a background-noise curve) and never above NR 15, measured at seated ear height, without impulsive, cyclical, or tonal character. That pair is a broadcast reference-room target, not a survey of houses.

CEDIA/CTA-RP22 rates the same job with NCB (balanced noise criterion) at Performance Levels, with all AV and mechanical systems on. Maximum / recommended NCB is 35 / 26 at Performance Level 1, 26 / 22 at Performance Level 2, 22 / 18 at Performance Level 3, and 18 / 15 at Performance Level 4.

Oversized ducts drop velocity. Put silencers on any run that also serves another room. Isolate the air handler from shared structure. Flex duct is acceptable only where break-in noise (sound punching through the duct wall) is not a risk. A dedicated mini-split is one option when the house unit cannot meet the NCB target; have the mechanical designer assess indoor-unit noise, condensate, and fresh-air makeup before you lock it.

Frisco mechanical work sits under the 2024 International Mechanical Code, effective 1 March 2026. Have the plans examiner look at the duct layout.

How do you measure the finished room?Link to this section#

The numbers on the drawings are calculated targets. After drywall, doors, and HVAC close, measure. Put the microphone at seated ear height in the main seat, then repeat at the other seats you care about. ITU-R BS.1116-3 §8.3 wants the impulse response from every loudspeaker at the assessors' listening positions and also checks worst-case seats. miniDSP's UMIK-1 setup note starts the first sweep at the listening position. The UMIK-1 is a USB calibrated measurement microphone; miniDSP rates 20 Hz-20 kHz with that unit's calibration loaded. Room EQ Wizard (REW) measures rooms, speakers, and subwoofers. Its Making Measurements help runs the sweep after input, output, and SPL calibration.

Read two plots. Frequency response is level versus frequency: peaks, nulls, and whether the first axial notes sit near the calculated 25 Hz, 34.4 Hz, or 61.1 Hz of the 22 × 16 × 9 ft example. Decay is how long sound takes to fall; Tm averages that time from 200 Hz to 4 kHz. A calculated Tm of 0.241 s is a target; the measured average in that band is the result.

Then measure background noise with the air handler and the AV rack running. ITU wants that reading at seated ear height. RP22's NCB pairs assume all AV and mechanical systems are on. If measured Tm in the 200 Hz-4 kHz band sits above the target, add absorption that works in that band. If one seat sits in a deep null, move that seat or a candidate subwoofer. If NCB is high with the equipment on, fix the air path or the rack fan. EQ can trim a peak after the shell is set; it does not replace isolation or board thickness.

What belongs on the drawings before anyone bids?Link to this section#

Walk the unfinished room with a tape. An integrator or general contractor (the builder who coordinates the trades) needs this before anyone prices speakers.

1. Length, width, and height to the structural surfaces, not to the face of a future panel, plus a photo of each wall.
2. The ITU / EBU ratio result and the three first axial modes, with the 1100 ft/s speed of sound written next to them.
3. Seat count, row layout, and the main listening position, plus candidate subwoofer locations (corners, mid-wall, or multiple cabinets).
4. Every room that shares a wall, floor, or ceiling, and the Isolation Level you want from the RP22 table.
5. Door and window schedule: solid-core thickness, whether you will use a lobby, and any glass that faces a noisy yard.
6. HVAC: equipment location, duct path, register locations, and the NCB target for the Performance Level you want.
7. First-reflection marks on both side walls and the ceiling, plus a do-not-treat bounce patch if you plan upfiring height speakers.
8. Rack and projector location, including whether the projector sits outside the room behind a porthole (RP22's Isolation Level 4 preference).
9. A note that treatment fabric, if any, must stay acoustically open through the band the panel is built for; RP22 calls that out for 500 Hz-5 kHz diffusers.

Skip the bid that quotes speakers and ignores the shell. A line-item for acoustic panels with no isolation or HVAC note is a finish allowance, not a room plan.

When is DIY construction enough?Link to this section#

Do the ratio test yourself. Move a planned wall on paper before the framer sets it. Speaker cable, screen-wall framing, and acoustic backing have to land before drywall — after that, every improvement is a patch.

Sealing is also fair DIY: acoustic caulk at every penetration, staggered boxes, a 45 mm solid-core doorset, and a weatherstripped threshold. Extra drywall on resilient channel (metal strips that decouple drywall from studs) or a second stud wall belongs on a tested assembly with a lab STC rating. Follow that assembly, keep the two leaves from hard-connecting, and coordinate electrical boxes and ducts with the trades who cut the wall.

Stop at the room-in-a-room. RP22 makes an acoustical consultant mandatory for Isolation Level 4. Skip egg-crate mattress foam. Foil-faced 703 has a different absorption spectrum than plain 703; use it only if that spectrum matches the band you need.
